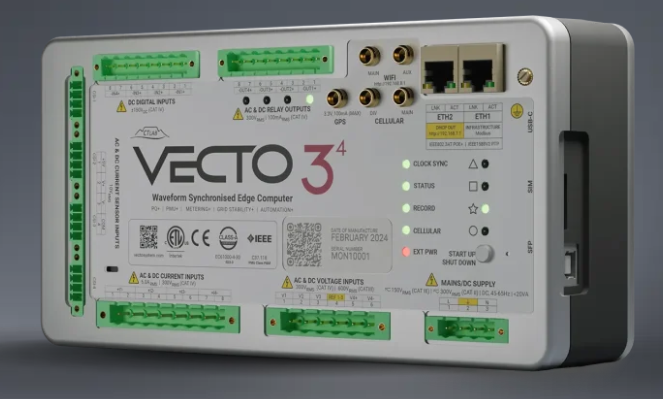

Vecto 3.4 - Mulitifunction PQ analyser, fault recorder and PMU

The Vecto 3.4 is a three-phase GPS synchronised power quality instrument with 4 x voltage and 4 x current input channels.

The VECTO 3.4 is an IEC 61000-4-30 Class A Edition 3 (2015), edge-computing based Multifunction Waveform Synchronised, Enterprise grade Power Quality Analyser (PQI) [Synchronised Waveform Measurement Unit (SWMU)], Phasor Measurement Unit (PMU), Intelligent Electronic Device (IED) monitoring and control device that synchronises with every other VECTO permanent installation Power Quality analyser and monitoring device installed across your power network.

Hardware Features

1.5MHz sampling rate
- 500kHz analogue bandwidth
- 50kHz diagnostic waveform capturing
GPS, IEEE 1588V2 (PTP) & NTP time synchronisation
NVMe M.2 SSD data storage
Battery-backed GPS w active antenna
Battery-backed 4G cellular modem w MIMO antennae
Battery-backed WiFi w MIMO antennae
2 x Gigabit Ethernet ports
1 x Gigabit SFP fibre port
Lockable USB-C expansion port
Li-Ion battery
Universal AC/DC power supply
IEEE 802.3 compliant POE+
Fanless design
Rugged aluminium enclosure with DIN rail mounts
Comprehensive onboard device telemetry

Functional Features

Linux operating system with comprehensive cyber-security support
Encrypted communication with onboard open VPN client
Web server with real-time viewer
Field upgradeable
Rich diagnostic event data streams with long pre- & post data
Diagnostic waveform data sampled at fixed sampling rate
XrossTrigger mechanism – (synchronous cross-triggering of multiple devices)
Measures AC & DC parameters
Offline synchrophasor recording
Fast SCADA parameter update speed
Supports 16.66Hz, 50Hz, 60Hz & 400Hz networks
Harmonic powers & phase
Prevailing phasors
- Prevailing harmonic magnitude ratio
Higher harmonic bands (up to 25kHz)
Frequency lock on chopped voltage waveforms
Calculate 3rd or 4th current from existing 2- or 3-current inputs
Compensate harmonic amplitude & phase angle of external sensors
Simultaneously record various time interval data streams

External Interfaces

4 x High impedance voltage inputs with selectable measurement range
4 x Galvanically isolated current inputs
4 x Current sensor inputs with selectable measurement range (5V Powered)
4 x Analogue/logic event inputs
4 x Solid-state relay outputs w LED Indicators
1 x Universal AC/DC power supply input
2 x Gigabit Ethernet ports with POE & PTP support
1 x 1000BASE-X SFP cage
1 x MIMO WiFi antenna port
1 x MIMO cellular antenna port
1 x SIM slot
1 x Active GPS antenna port
1 x USB-C expansion port (lockable)
13 x LEDs
1 x Power on/off push button
1 x Safety earth connection point
1 x Kensington key slot

Product Functionality

PQI: IEC61000-4-30 ED3.0 Class-A
PMU: IEEE C37-118 Class P&M
oPMU: Oscillation phasor measurement
Automation protocols supported
- Modbus
- DNP3
- IEC61850
- IEEE C37-118 – Simultaneous Class M & Class P (PMU Streaming)
Billing features
- Imported
- Exported
- Net
- Month to date Modbus register
- Previous month Modbus register

MORE VIDEO AND DEMO, GO TO OUR TUTORIAL PAGE

Osprey lite software

The software is free with the product. The main functionalities are:

Establish secure TCP/IP connectivity
Display real-time data
Configure instruments
Download recorded data
Present recorded event, trended, waveform and synchrophasor data in graphical and tabulated format
Classify recorded data according to regional and international standards and norms (eg EN50160, NRS048)
Generate site assessment reports (compliant to international standards and norms.
Import and export data to enable information sharing
Manage recorded data (delete data on instrument or PC)
Schedule GPS time synchronized Snapshots®
csv and PQDIF data export

Osprey OS software

Osprey OS is a cloud based big data hosting and visualisation system.

Data is accessible in near real-time via a mobile friendly web interface. The system enables the deployment of numerous ”Sentinel®” to monitor individual network parameters at individual metering points. An alarming system notifies users of anomalies via E-Mail, SMS or Push Notifications.

Data is accessible on laptops, mobile phones and tablets in various graphical and tabled formats through “live” dashboards, SCADA type views and printable reports. Our tools assist clients to make strategic data-driven decisions on various aspects of their networks. Different functionalities or applications are grouped together into different Portals to serve various like-minded customers. Role based security is applicable.

More information / Brochure

Portable version Vecto 3.4

The instrument is build in in a portable case where integrator for flexes are included. All connections are done by means of touch safe connectors.

The protable version includes:

Instrument built in in a pelican case
Flexible current clamps (rogowski)
5A/1V micro clamps
Voltage and current connection set
Crocodile clamps
Wire push through voltage connection clamps
fuse holders
Ethernet cable
Cellular and wifi antenna
Measurement transformer (optional)
This all in a solid pelican transport case

Contents is flexible depending on the whishes of the client

Accessories

We provide several accessories for communication and to make the devices protable. You can find a selection of the accessories below, if you have a specific wish, contact us and we will gladly see how we can solve it.

Current flexes in different sizes and current levels

GPS antenna (SMA connector)

Miniature current clamps 1A / 1V or 5A / 1V

Voltage connection set (connection leads and crocodile clamps)
